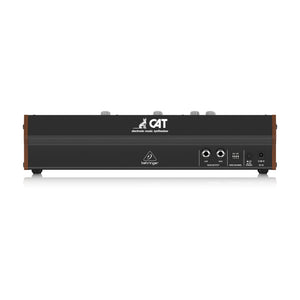

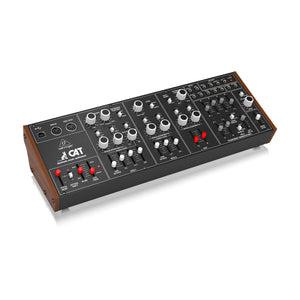

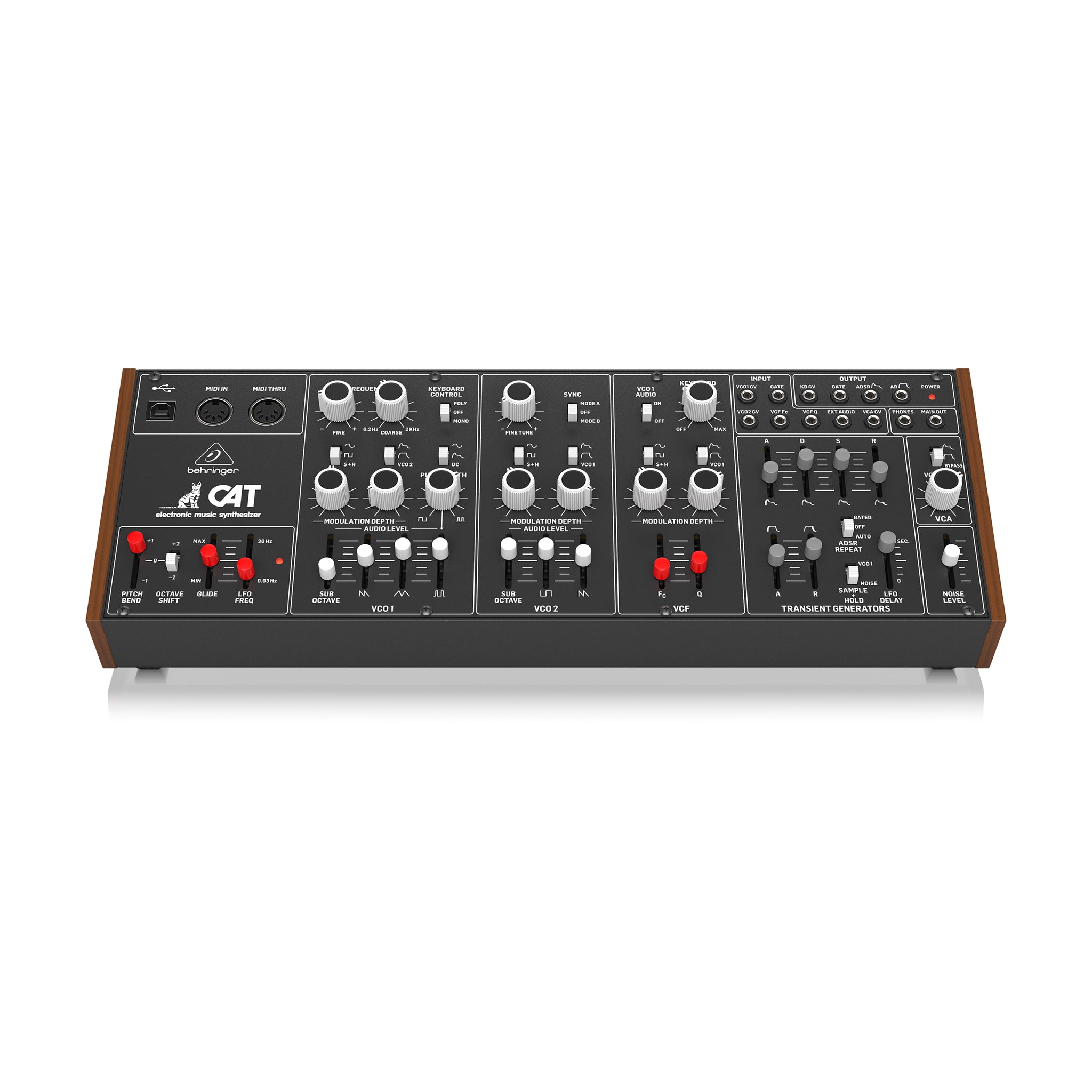

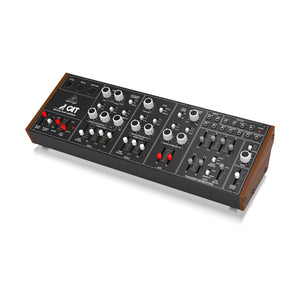

Behringer CAT Duophonic Analog Synthesizer Module

An ultra-affordable and even more feature-packed homage to that iconic synthesizer comes in the form of the Behringer CAT. Conjure up the virtually any sound imaginable with incredible finesse and ease. The pure analog signal path is based on authentic VCO, VCF and VCA designs in conjunction with 4 variable and simultaneous oscillator shapes and Duophonic/Paraphonic capabilities. Owning a CAT is like having your own personal time machine, enabling you to freely embrace the past – or shape the future. And the best of all, it doesn’t scratch.

Features:

• Amazing analog synthesizer with dual VCO design allows for insanely fast music creation
• Authentic reproduction of original "CAT SRM II" circuitry with matched transistors and JFETs
• Pure analog signal path based on authentic VCO, VCF and VCA designs
• 4 variable and simultaneous oscillator shapes (Sawtooth, Triangle, modulated Pulse and Sub-Octave Square) for ultimate sounds
• Duophonic/Paraphonic mode allows both oscillators to be independently controlled
• Oscillators can be modulated from 6 different sources with 2 modulation depth attenuators
• Classic filter design (low pass with peak/resonance) with self-resonance capability
• Filter can be modulated from 6 different sources with 2 modulation depth attenuators
• Dedicated and fully analog sine/square wave LFO
• 2 analog Envelope Generators for modulation of VCF and VCA
• White noise generator dramatically expands waveform generation
• 16-voice Poly Chain allows combining multiple synthesizers for up to 16 voice polyphony
• Complete Eurorack solution main module can be transferred to a standard Eurorack case
• 47 controls give you direct and real-time access to all important parameters
• Audio input for processing external sound sources for enhanced creativity
• External control inputs and outputs (High Note CV, Low Note CV, Gate, Filter etc.)
• Comprehensive USB/MIDI implementation with MIDI channel and Voice Priority selection
